Low voltage Drives

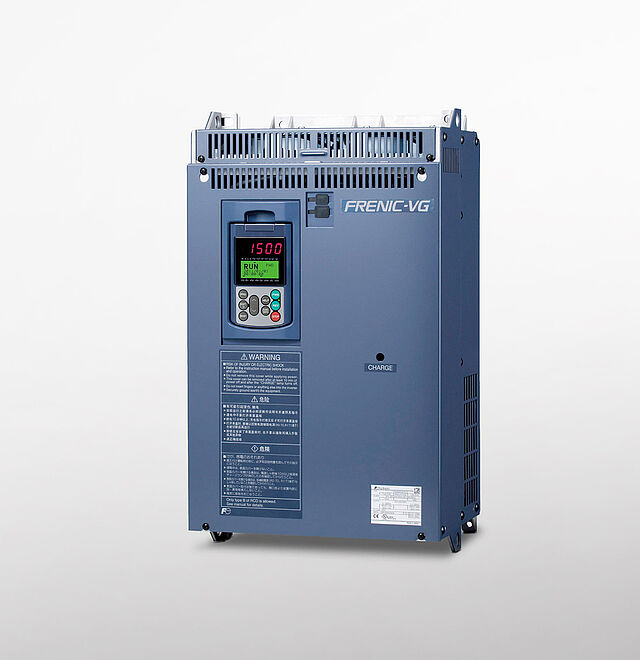

FRENIC-VG (FRN-VG1) Unit

The best performing inverter in the market

With the FRENIC-VG, Fuji Electric has combined its best technologies in one model to bring the VFD with the best performance to the market. In addition to the basic functions, the model convinces with these improvements: support for applications that were previously difficult to implement due to technical and performance limits, easier and user-friendly maintenance, and greater environmental protection and safety.
The FRENIC-VG frequency inverters are available as a unit type and a stack type.

Certificate

Downloads

Features

  • Powerful: from 0.75 kW to 630 kW in triple rating HD, LD and MD
  • Robust: can also be used in problematic environments, for example under sulphurous gases, salty atmospheres, dust, humidity, etc.
  • Flexible: IM control (open and closed loop) and PMSM control (open and closed loop)
  • Torque accuracy: +/- 3 %
  • Current loop bandwidth: 2000 Hz
  • Speed control accuracy: +/- 0,005 %
  • Speed loop bandwidth: 600 Hz
  • Connections: USB on board, typical field buses and Ethernet-based field bus
  • Safety – made simple: STO, SS1, SLS, SBC
  • Solutions for all applications: Cranes, rubber, paper, winding, test benches, presses, marine winches, flying saw systems, positioning, etc.
  • Versatile and customizable: 5 slots to adapt to requirements, integrated real-time clock, FULL PLC on board, etc.

Fieldbus options:


  • PROFIBUS-DP communication card (OPC-VG1-PDP)

  • DeviceNet communication card (OPC-VG1-DEV)

  • T-Link communication card (OPC-VG1-TL)

  • CC-Link communication card (OPC-VG1-CCL)

  • SX bus communication card (OPC-VG1-ESX)

  • Terminal block for high-speed communication (OPC-VG1-TBSI)

  • PROFINET-IRT communication card (OPC-VG1-PNET)

Other options:


  • Synchronized interface (OPC-VG1-SN)

  • Analog input/output interface expansion card (OPC-VG1-AIO)

  • Digital input (OPC-VG1-DI)

  • Digital input/output (OPC-VG1-DIO)

  • PG interface card / + 5 V line driver (OPC-VG1-PG)

  • PG interface card / open collector (OPC-VG1-PGo)

  • PG interface card / ABS encoder with 17-bit resolution (OPC-VG1-SPGT)

  • PG card for synchronous motor drive / line driver (OPC-VG1-PMPG)

  • PG card for synchronous motor drive / Open collector (OPC-VG1-PMPGo)

  • User-programmable card (OPC-VG1-UPAC)

  • Functional safety card (OPC-VG1-SAFE)
