Low voltage Drives

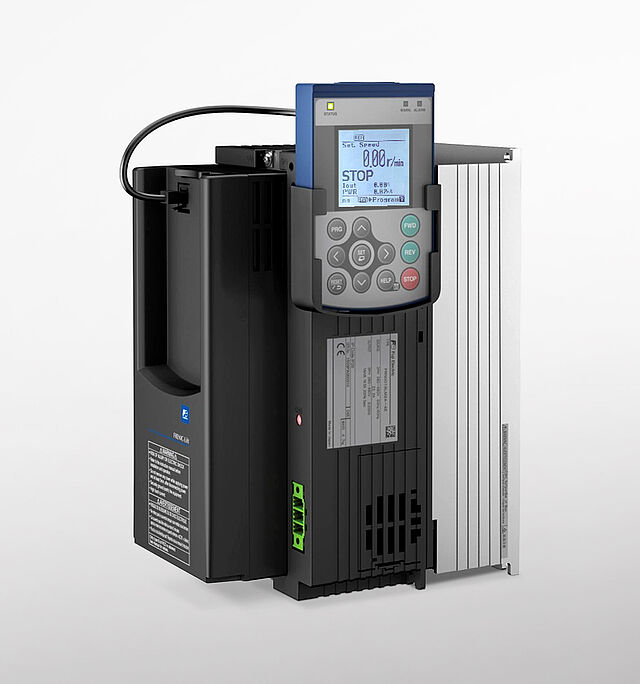

FRENIC-Lift (FRN-LM2A)

The most preferred inverter for lift applications since 2005

Over the years, Fuji Electric has built up a well-founded expertise in inverters for elevator applications. In 2005, Fuji Electric developed the first FRENIC-Lift inverter for the special requirements of lifts. Today, the FRENIC-Lift is the most preferred inverter for lift applications. Based on our market experience, we have now developed an improved version of the FRENIC-Lift: It is smaller but smarter.

Certificates

Downloads

Features

  • Book type frame up to 15 kW, two mounting options
  • User-defined logic (PLC function)
  • Feedthrough mounting with IP 54 heat sink (book type)
  • Removable input and output power terminals (book type)
  • Facilitated emergency operation with 24 VDC power supply for control panel (book type)
  • Solution without contactor compliant with EN 81-20 and Pollution Degree 3
  • Different energy saving levels according to ISO 25745
  • Two new motor control modes: vector control with peripheral PG, sensorless vector control for emergency operation (PMSM)
  • Faster speed and current control loop for easier and faster adjustment
  • Integrated EMC filter
  • Removable control terminals
  • Advanced fieldbuses for lift applications (CANopen CiA DSP 402 & 417 and DCP 3 & 4)
  • Several certified safety functions
  • New software functions to facilitate functions

Option cards


  • OPC-PR: for encoders with SinCos incremental signals and SinCos absolute signals

  • OPC-PS: for encoders with SinCos incremental signals and serial communication

  • OPC-PSH: for encoders with SinCos incremental signals and serial communication plus Hiperface®protocol

  • OPC-PG3: for incremental encoders with open collector/push-pull and line driver pulse repetition output

  • OPC-PG3ID: for incremental encoders with open collector/push-pull and open collector pulse repetition output

  • OPC-PMPG: for line driver incremental encoders and 3 bit (U, V and W) for absolute encoders. With incremental pulses repetition (line driver)
