HMI V10 Series

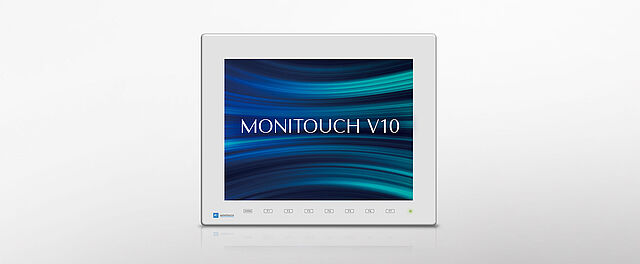

The revolutionary Monitouch V10 series

Introducing the revolutionary Monitouch V10 series – your ultimate solution for stress-free operations in the world of HMI technology. Enjoy smooth navigation and effortless switching.

One of the outstanding features of the V10 series is its lightning-fast rendering capability, one of the highest screen switching speeds in the market. Say goodbye to frustrating delays and hello to seamless transitions between screens so you can effortlessly navigate your HMI experience.

The V10 series also offers the fastest available response time for inputs. Every touch and interaction is immediately fed back, ensuring a fluid and responsive user interface. With the shortest startup time after power-on, you'll be up and running in no time, and you won’t waste valuable minutes waiting for your HMI system to initialize. Get to work right away and make the most of every moment.

The chief reason to select the V10 series is its overwhelming performance against competitors.

In addition to benchmarking HMI from all over the world, we thoroughly analyzed how they were used in the field, and achieved industry-leading performance in six aspects (rendering, operation, startup, communication, transfer and custom code).

*1 Comparison with V9 series using our sample screen programs (according to our own research)

Advantages to use the V10 series

Features – Network

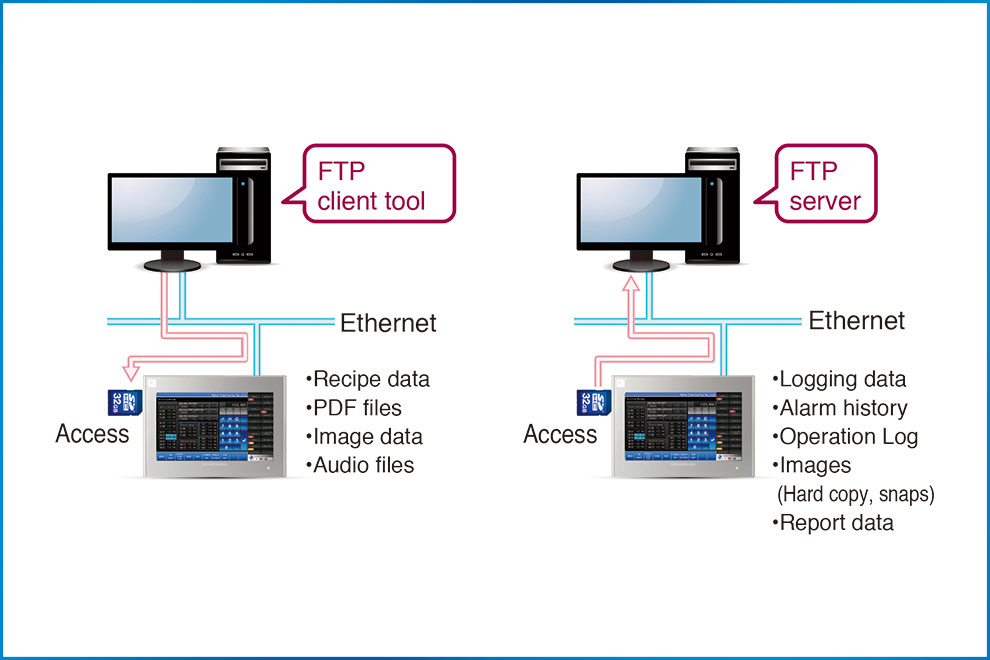

FTP compatible

  •  Easily retrieve files in storage from remote locations

FTP Server Function: Files in a storage media inserted in a V9 can be read out and written using a PC.

FTP Client Function: Files on an FTP server can be read and written using the V10 series.

Built-in VPN router

  • Secure and inexpensive remote access
  • With an Internet connection, you can set up a VPN environment only with the V9 series, without using a VPN router.
  • SSL-VPN enables bug-proof and tamper-proof communication.
  • Easy remote access to peripherals.
  • Integrated routing function allows easy remote access to PLC and various devices connected to the V10 series by Ethernet.

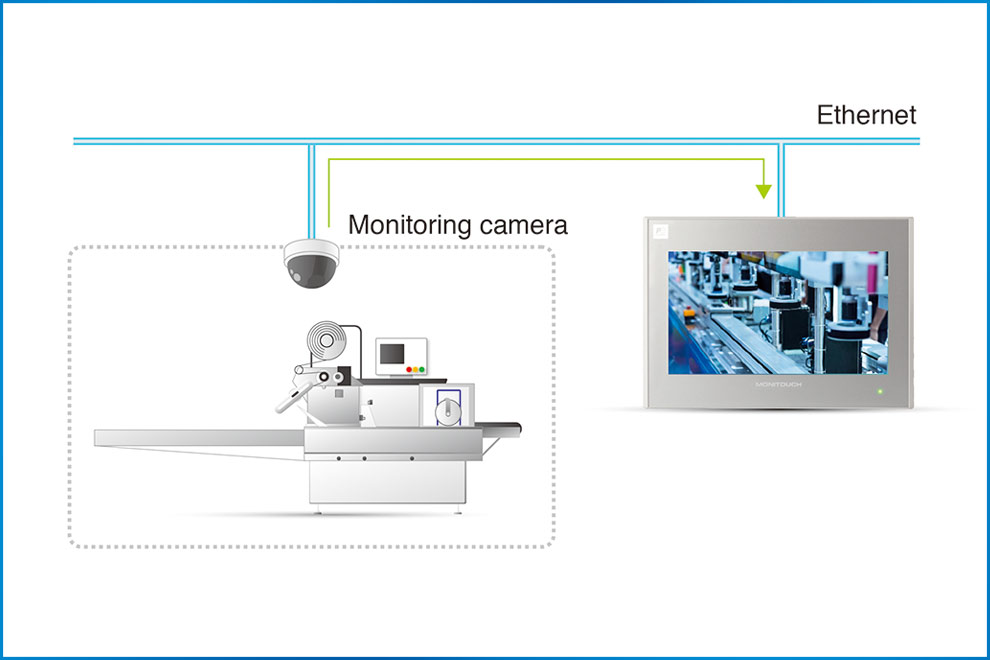

Network camera compatible

  • Real-time monitoring of remote locations

By connecting to a network camera, it is possible to display camera images in real time on the V10 series screen. It is especially useful for monitoring and checking the inside of clean rooms.

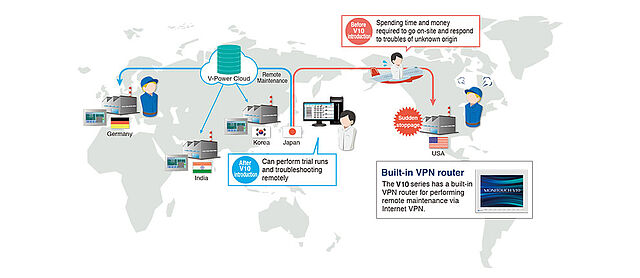

Web Machine Interface (WMI)

  • VPN Remote Access / Cloud Data Utilization Solution

The Web Machine Interface makes remote monitoring secure, easy and inexpensive.
It offers two services: The “VPN Remote Access Service” enables secure remote monitoring by VPN, and the “Cloud Data Utilization Service” can receive various types of data via a cloud server. Remote maintenance makes it possible to detect signs of anomalies in advance and ensure proper maintenance of the machine. It also helps to reduce the number of sudden stoppages and to carry out preventive maintenance.

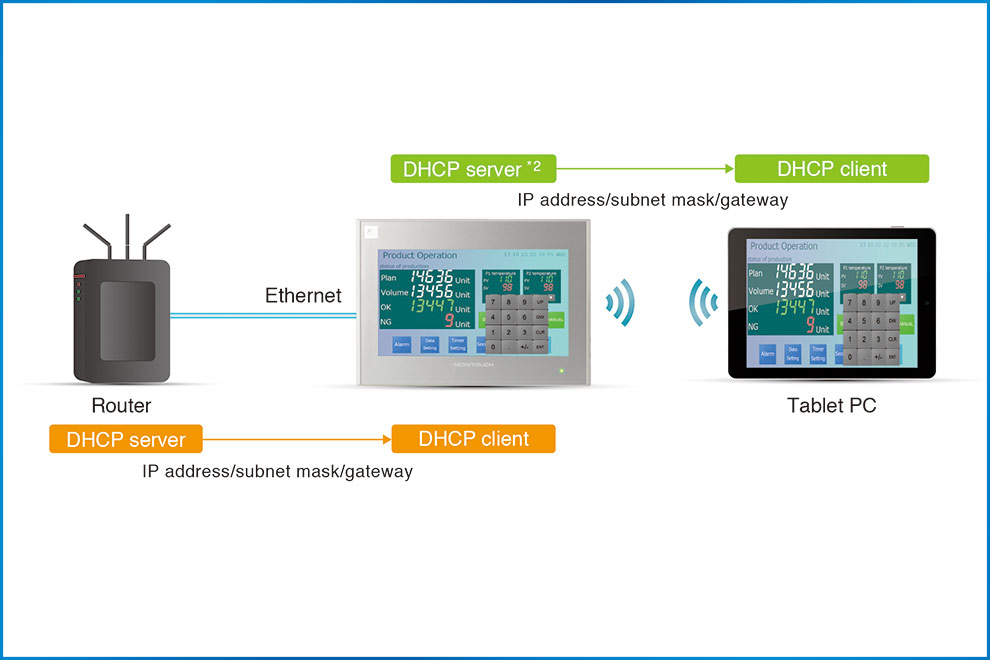

DHCP server * / DHCP client

  • Easy communication with DHCP

The information required for network connectivity can be acquired from a server as a DHCP client or can be assigned to a client as a DHCP server.

* The DHCP server is only available for wireless LAN compatible products.

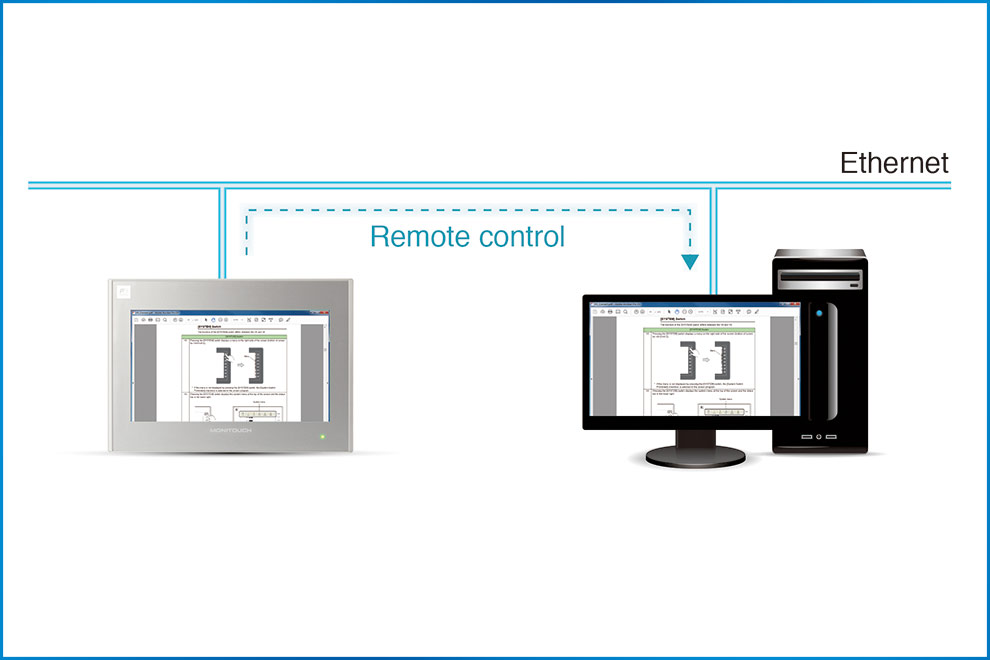

Remote desktop

  • Control the PC screen with the V9 series

By connecting to Ethernet, you can display the PC screen directly on the V9 screens. You can view work instructions and manuals located on PCs even at manufacturing sites that do not allow to carry in PCs, so it makes maintenance more efficient.

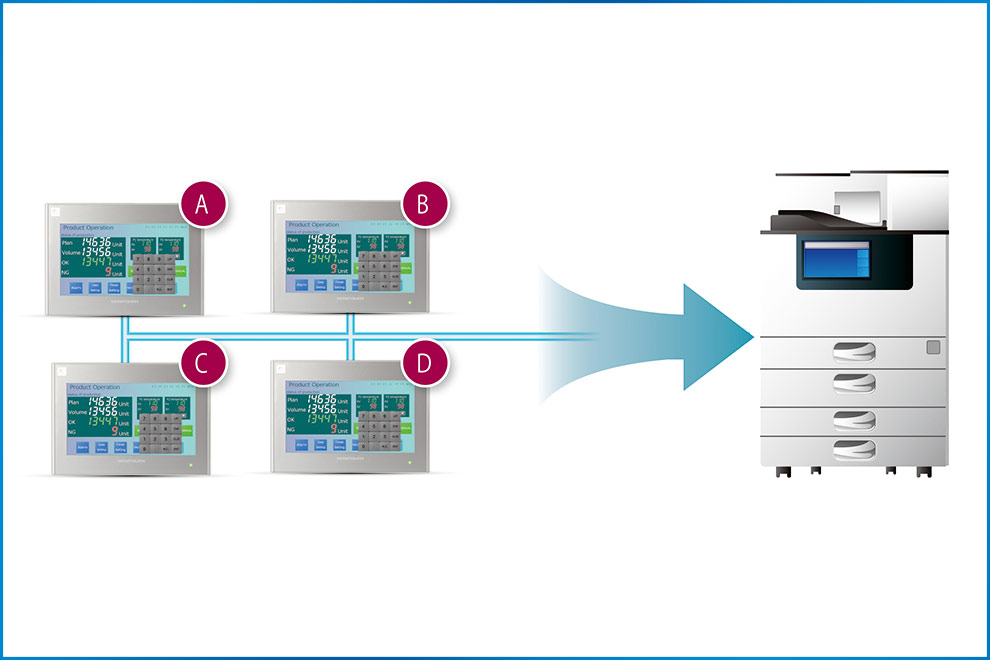

Network printer compatible *

  • Share printers with multiple V9 series

Printing jobs from multiple V9 series can be shared via a single network printer. The network printer connection supports both wired and wireless LAN, and that helps to save space and cables.  * Compatible only with EPSON ESC/P-R. Wireless LAN connection is possible for wireless LAN compatible products.

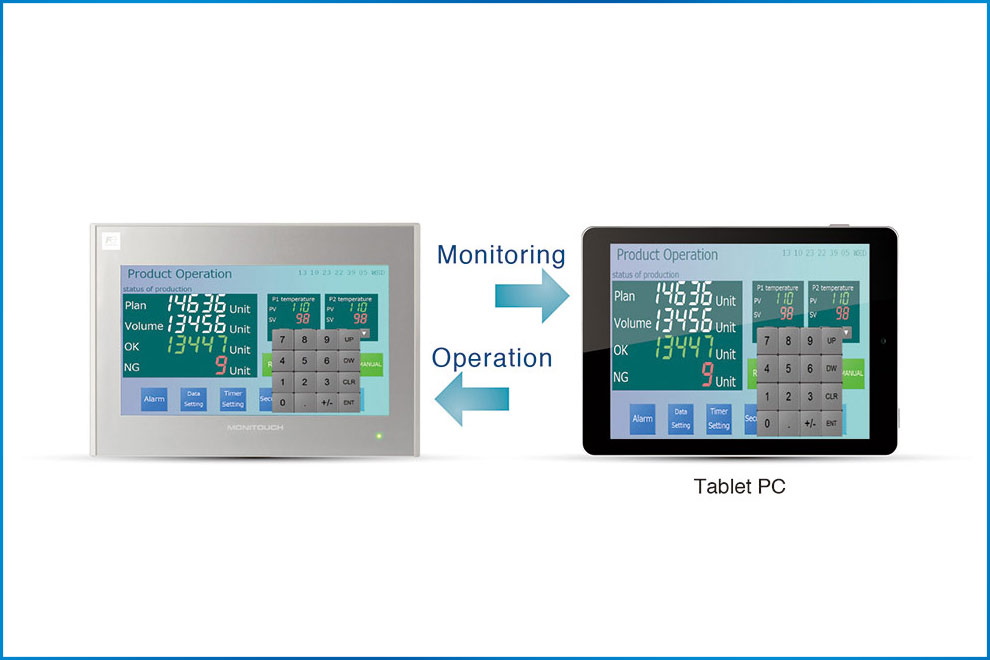

 VNC server

  • Remote connection from tablet PCs

Each V9 unit has remote monitoring/maintenance capabilities via Ethernet, thanks to its VNC feature.

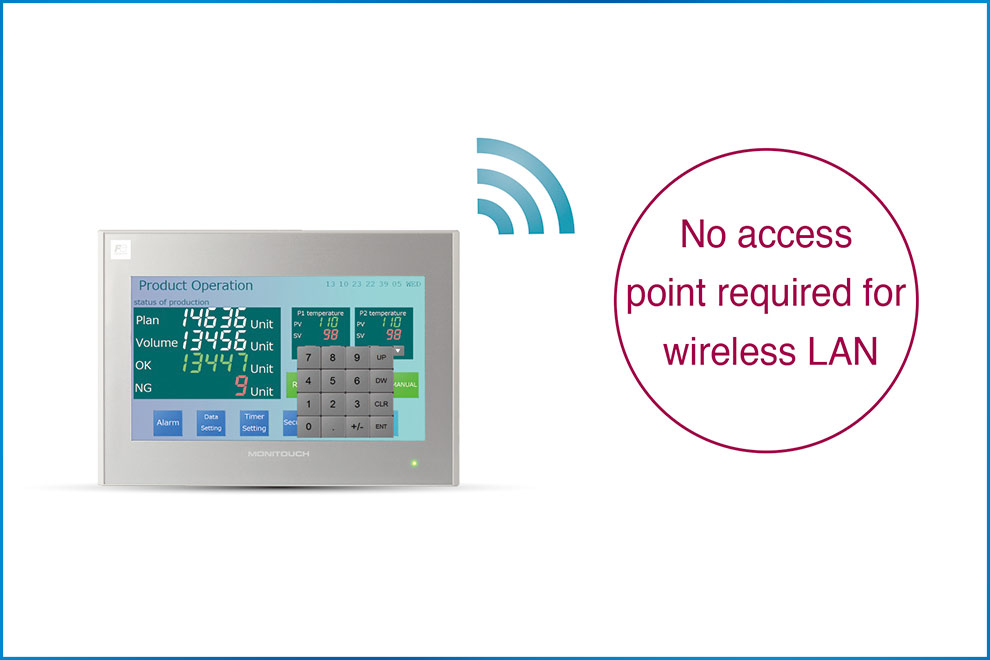

  • Direct communication with your tablet PC

Wireless LAN models have an integrated access point to connect with wireless LAN devices without setting up extra access points.

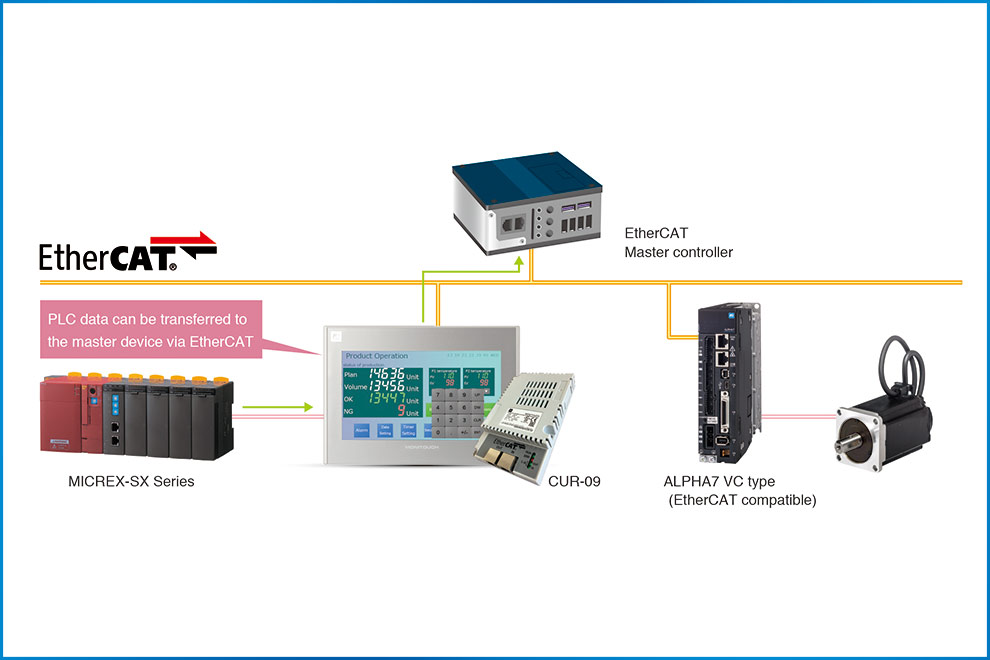

Supports EtherCAT connection

  • EtherCAT (Slave) connection

The “CUR-09” communication unit can be connected to EtherCAT compatible models. It also serves as a gateway between devices connected to the V9 series and the EtherCAT master equipment.

8-way communication

  • Connection and data transmission with multiple devices

Up to eight different models, off-brand PLC and other peripherals can be connected at the same time via Ethernet and serial connection.

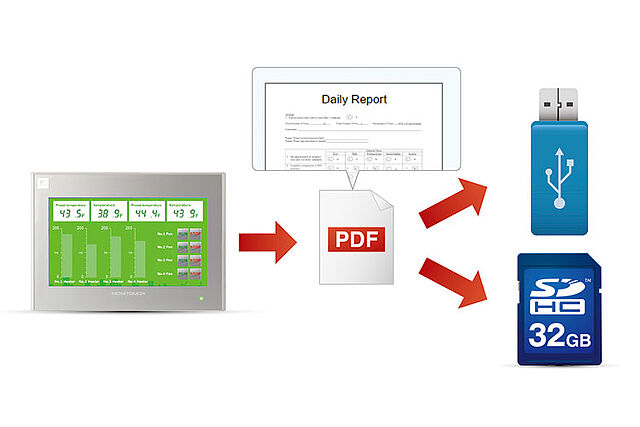

Extended datasheets

It also supports PDF output in addition to standard printer output. By converting various forms such as daily reports to PDF, a printer is no longer needed. It helps to save paper and space. These PDF files can be transferred to office PCs using FTP server/client functions, which allows you to check data without having to go to the production site.

Features – Storage

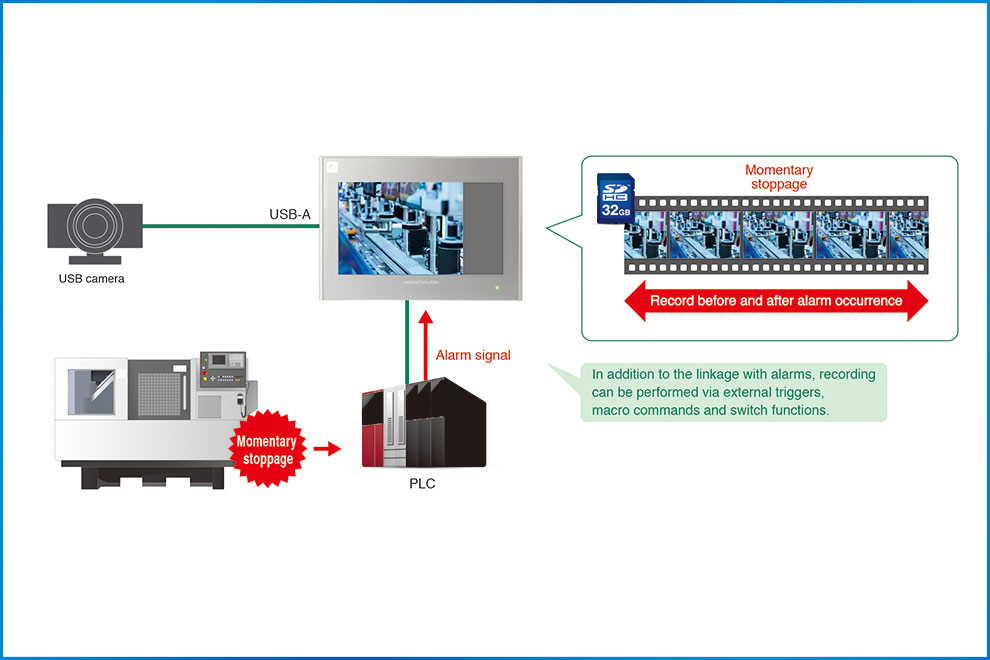

Compatible with event record functions

  • Instantaneous video recording and playback

With an ordinary USB camera, you can record a video before and after alarms occur, e. g. during momentary interruptions, and store it on an SD card to support root cause investigation and improve the operational efficiency of the installation.

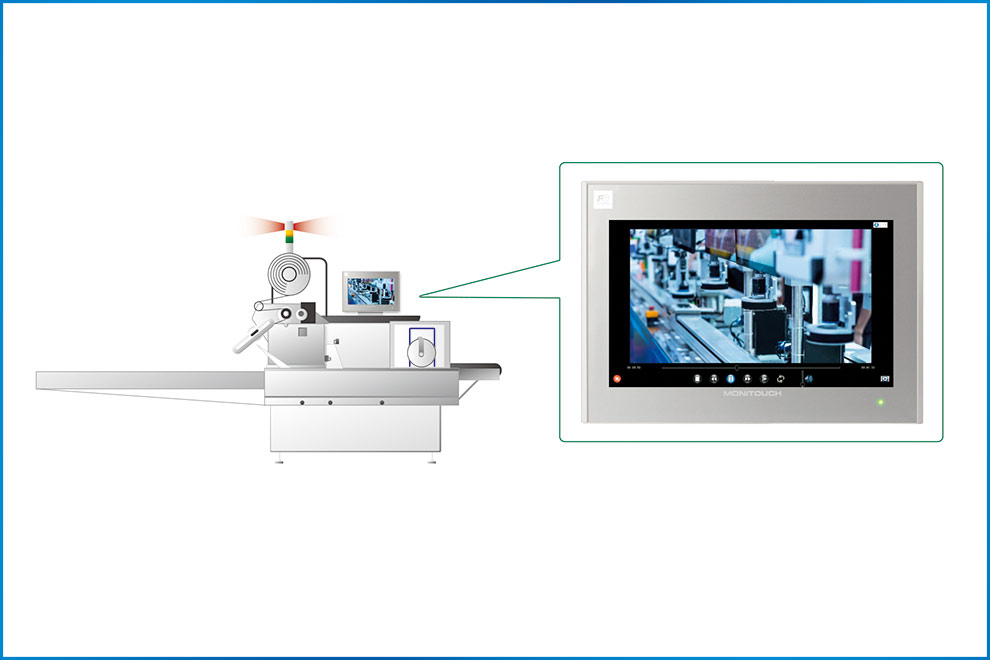

Equipped with video player

  • Playing back stored video data

By playing videos used to troubleshoot anomalies, operators can easily learn how to respond quickly to the problems.

In addition to viewer-initiated playback via the system menu, video can also be played back via switch and PLC control commands. It supports MP4 (MPEG-4) video files to ensure high compression and high quality.

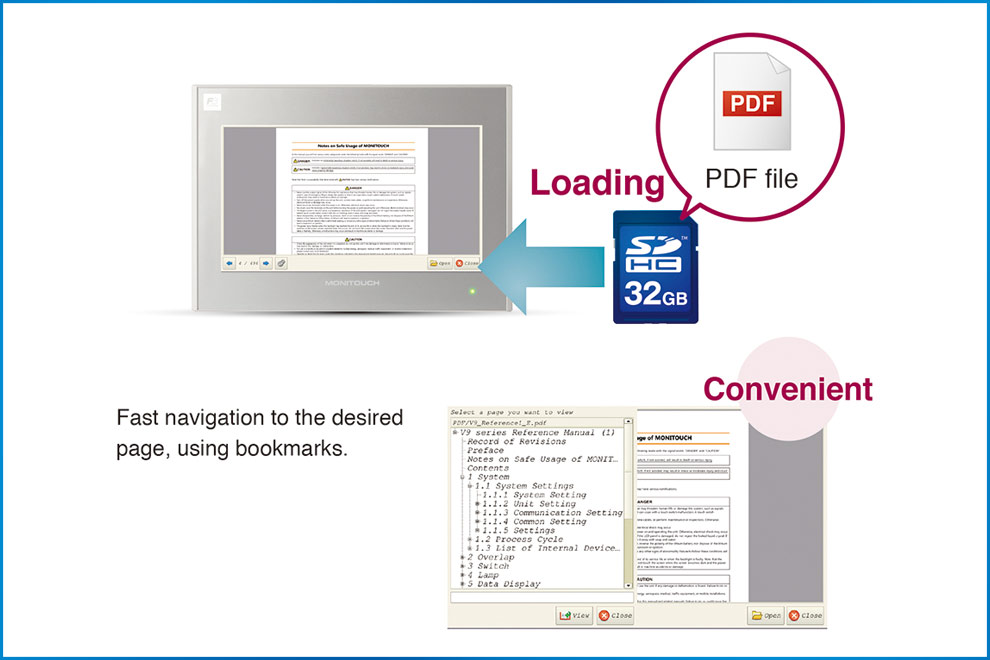

PDF viewer function

PDF files stored on an SD card can be displayed. PDF operating instructions can be used for troubleshooting.

Features - Security

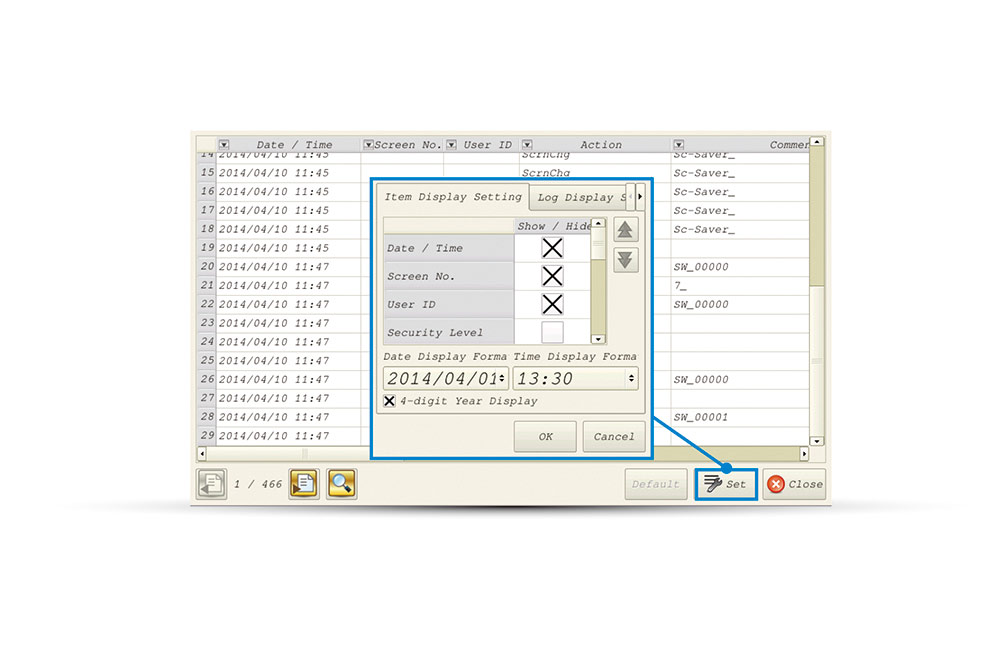

  • Display item settings

It is possible to select items to be displayed in the operation log.

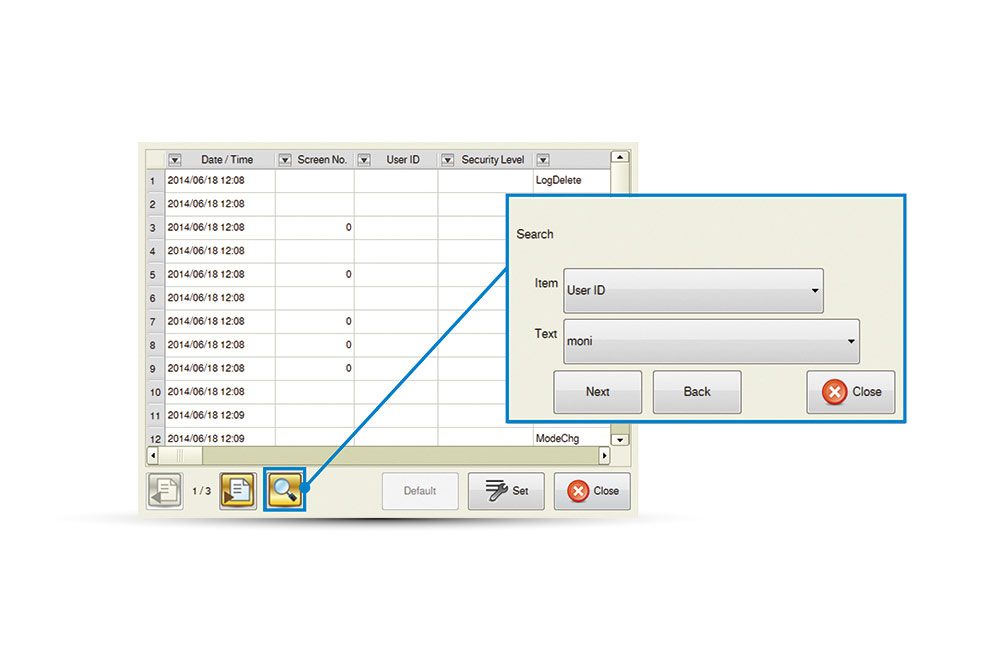

  • Search function

The operation log can be searched by specifying an operator or date and time.

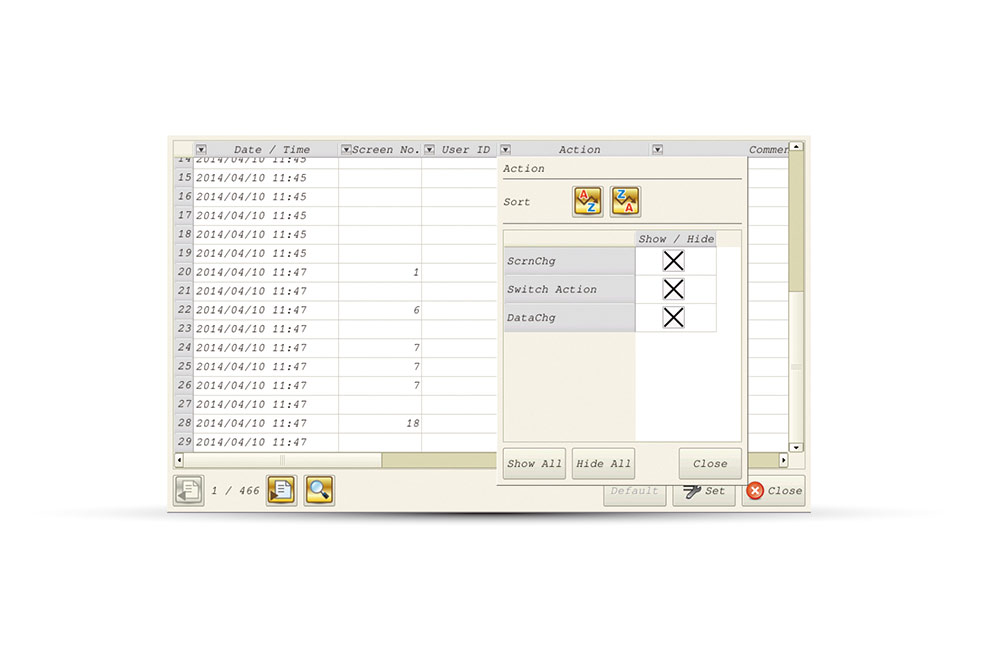

  • Filter/Sort Settings

Filters and sorting can be set for the displayed items.

Operation log

  • Improved operation log viewer

Our improved log viewer is a log management software that monitors the log files generated by servers, applications and the network. It detects patterns and educates users about them. In this way, it helps to identify and resolve performance and security problems.

Security Features

  • Security level setting

A security level between 0 and 15 can be set for each screen. You can create a high-level security environment by restricting functions based on the security level.

Switch interlock: A security level can also be set for a switch. Only users who log in with the appropriate authorization level can operate the switch.
